AirTAC HLQ Series: High-Precision Ball Bearing Slide Table Cylinder

The AirTAC HLQ Series is a premium pneumatic slide table engineered for applications demanding smooth motion and high load stability. Available in both single and double guide rail configurations, this series utilizes high-quality ball bearings to ensure precision linear travel with minimal friction.

Designed for versatility and durability, the HLQ series features a wide operating pressure range and integrated cushioning to protect your equipment during high-speed operations. Whether you are performing delicate electronic assembly or robust industrial positioning, the HLQ series provides the reliable, double-acting performance your automation setup requires.

Key Features:

• Dual Rail Options: Choose between single guide rails (6mm-8mm) or double guide rails (12mm-25mm) for enhanced stability and load capacity.

• Precision Ball Bearing Slide: Ensures ultra-smooth linear motion and high repeatable accuracy.

• Double Acting Performance: Robust air-driven extension and retraction for consistent cycle times.

• Integrated Protection: Features built-in bumpers on both ends or optional shock absorbers to minimize impact and noise.

• Versatile Threading: Port sizes support M5x0.8 or 1/8" connections with PT, G, and NPT thread types available to meet global standards.

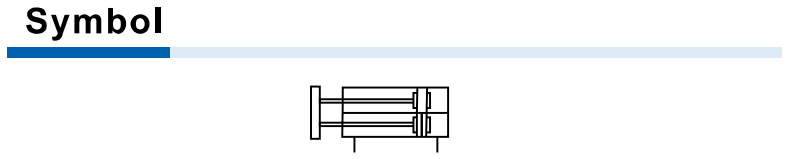

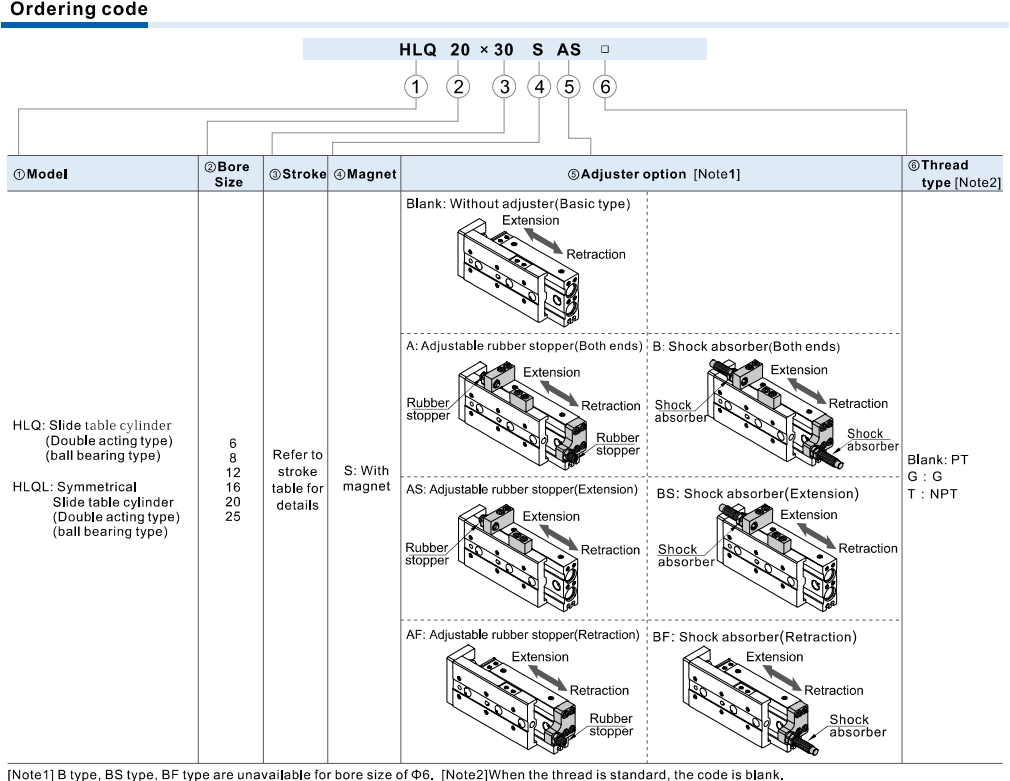

Specifications:

Bore size (mm)	6	8	12	16	20	25
Number of guide rail	Single guide rail		Double guide rail
Acting type	Double acting
Fluid	Air (to be filtered by 40μm filter element)
Operating pressure	0.2-0.7MPa (29-100psi) (2.0-7.0bar)		0.15-0.7MPa (22-100psi) (1.5-7.0bar)
Proof pressure	1.2MPa (175psi) (12.0bar)
Temperature °C	-20°C to 70°C
Speed range mm/s	50–500 mm/s
Stroke tolerance	Stroke≤100: +1.0 / 0, Stroke > 100: +1.5 / 0
Cushion type	Bumper (Both ends), Shock absorber
Sensor switches	CMSH, DMSH, EMSH
Port size	M5×0.8				1/8"

Stroke:

Bore Size (mm)	Standard Stroke (mm)	Max STD Stroke (mm)
6	10 20 30 40 50	50
8	10 20 30 40 50 75	75
12	10 20 30 40 50 75 100	100
16	10 20 30 40 50 75 100 125	125
20	10 20 30 40 50 75 100 125 150	150
25	10 20 30 40 50 75 100 125 150	150
