AirTAC HLH Series Miniature Slide Table Cylinder

The AirTAC HLH Series is a high-precision pneumatic actuator designed for space-critical applications requiring exceptional stability. This series features a miniature linear roller ball bearing integrated directly with the cylinder, providing a compact footprint without compromising on performance.

Engineered for precision assembly, the HLH series delivers excellent straightness and non-rotation precision. Its versatile design supports mounting from four different directions and piping from three directions, offering unmatched flexibility for complex machine layouts.

Key Features:

• Integrated Roller Ball Bearing: Combines a miniature linear guide with the cylinder for a streamlined, high-performance design.

• Superior Accuracy: Provides excellent straightness and non-rotation precision, making it ideal for delicate assembly tasks.

• 4-Way Mounting Flexibility: Can be installed from four different directions to fit your specific spatial requirements.

• Versatile Piping: Porting is possible from three directions, simplifying air line management in tight spaces.

Specifications:

Bore Size (mm)		8	12	16	20

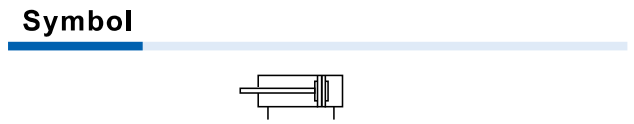

Acting type		Double acting
Fluid		Air (to be filtered by 40μm filter element)
Operating pressure		0.2-0.7MPa (29-100psi) (2.0-7.0bar)		0.15-0.7MPa (22-100psi) (1.5-7.0bar)
Proof pressure		1.2MPa(175psi)(12.0bar)
Temperature °C		-20°C to 70°C
Speed range mm/s		50–500 mm/s
Allowable kinetic energy (J)		0.008	0.025	0.05	0.1
Stroke tolerance		+1.0 / 0
Cushion type		Bumper
Sensor switches		CMSH, DMSH, EMSH
Port size		M5×0.8

Stroke:

Bore Size (mm)	Standard Stroke (mm)	Max STD Stroke (mm)
6	5 10 15 20 25 30	30
10	5 10 15 20 25 30 40 50	50
16	5 10 15 20 25 30 40 50 60	60
20	5 10 15 20 25 30 40 50 60	60
