AirTac MBL Series Mini Round Cylinder – Compact Aluminum Pneumatic Cylinder with Riveted Structure & Multiple Mounting Options

The AirTac MBL Series Mini Round Cylinder is a high-performance pneumatic solution designed and manufactured by AirTac Enterprise, a trusted name in precision automation components. This compact and durable cylinder is ideal for space-constrained applications, offering superior reliability and flexibility.

Key Features:

• Reliable AirTac Manufacturing: Engineered by AirTac Enterprise for consistent quality and dependable performance in industrial environments.
• Secure Riveted Structure: The front and back covers are permanently riveted to the aluminum barrel, ensuring strong structural integrity and long-term operational reliability.
• Compact, Efficient Piston Design: The piston uses a heterogeneous two-way seal structure that provides excellent sealing performance, compact dimensions, and integrated grease reservation, reducing maintenance and extending service life.
• Versatile Back Cover Options: Multiple back cover styles are available, allowing for easier and more flexible installation across a range of mounting scenarios.
• Multiple Cylinder Sizes & Mounting Accessories Available: Choose from a wide variety of specifications and accessory options to suit your application needs, offering complete customization and convenience.

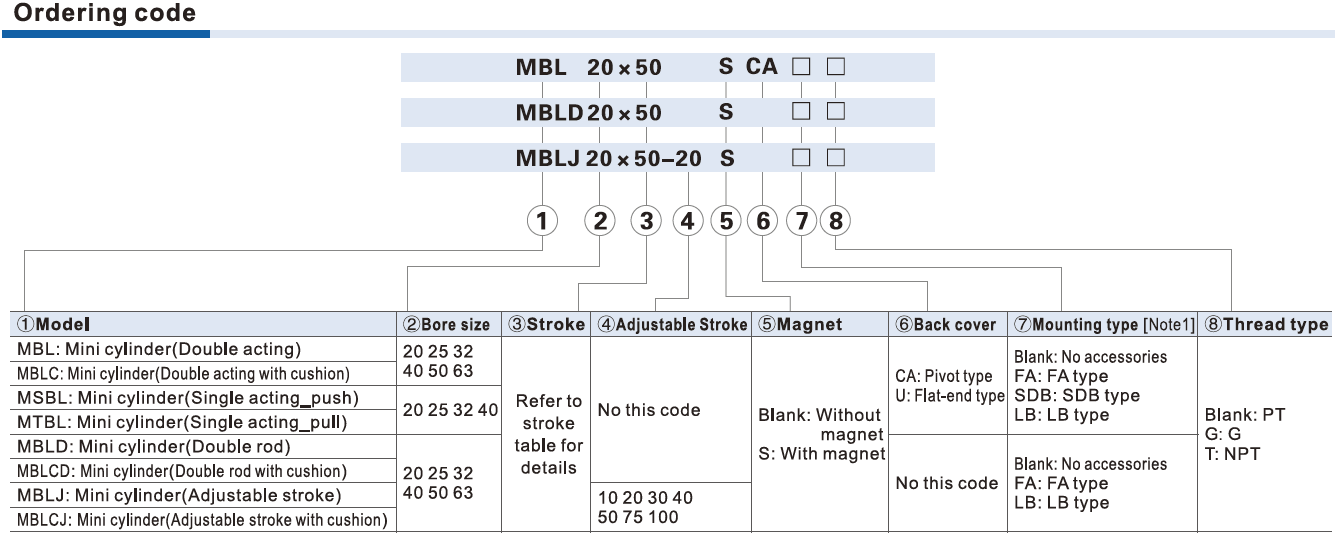

Specification:

Bore Size(mm)		20	25	32	40	50	63

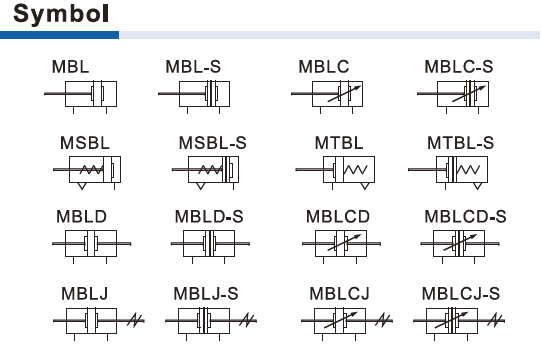

Acting type	MSBL/MTBL	Single acting
	MBL/MBLD/MBLJ	Double acting
	MBLC/MBLCD/MBLCJ	Double Acting with cushion
Fluid		Air (to be filtered by  40μm filter element)
Operating pressure	Double acting	0.15~1.0MPa (22~145psi)(1.5~10.0bar)
	Single acting	0.2~1.0MPa (28~145psi)(2.0~10.0bar)
Proof pressure		1.5MPa(215psi)(15bar)
Temperature °C		-20~70
Speed range mm/s		Double acting: 30~800     Single Acting: 50~800
Stroke tolerance
Cushion Type		MBLC, MBLCD, MBLCJ: Adjustable cushion;  Others: Bumper
Port Size		1/8"			1/4"



Compact, durable, and easy to install, the AirTac MBL Series Mini Round Cylinder is the perfect choice for engineers and system designers seeking space-saving, reliable, and customizable pneumatic performance.

Enhance your automation setup with the trusted innovation of AirTac – precision built for lasting results.



Stroke:

Bore Size (mm)		Standard Stroke (mm)	Max STD Stroke	Max Stroke
MBL	20/25	10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 300 350 400 450 500	500	800
MBLC	32/40	10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 300 350 400 450 500	500	800
	50/63	10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 300 350 400 450 500	500	800
MBLD   MBLJ MBLCD MBLCJ	20/25	10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 300	300	-­
	32/40	10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 300 350 400 450 500	500	­-
	50/63	10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 300 350 400 450 500	500	­-
MSBL	20/25	10 15 20 25 30 40 50 60 75 80 100 125 150	­-	­-
	32/40	10 15 20 25 30 40 50 60 75 80 100 125 150	­-	­-
MTBL	20/25	10 15 20 25 30 40 50 60 75 80 100	­-	­-
	32/40	10 15 20 25 30 40 50 60 75 80 100	­-	-­
